Premium 3M Thermal Non-Silicone SSD Cooling Solutions

SSDs or solid-sate drives are high-capacity data storage solutions used primarily in computers and other electronic devices. Since SSDs can attract and hold high heat levels, thermal cooling solutions must be implemented into these electronic devices. SSD cooling solutions draw heat away from primary sources and reroute them to heat sinks or other areas designated for heat displacement.

Contact us for more information regarding our thermal conductive pads for SSD cooling and other thermal non-silicone SSD cooling supplies. Or you can call us at 510-661-0950, and we will be happy to resolve any thermal conductive material questions that you may have.

Solid State Drives (SSD) Thermal Cooling Solution Options

3M is the world’s leader in the production of acrylic thermal non-silicone SSD cooling supplies. Rathbun’s 3M Thermal non-silicone cooling material provides an excellent choice for use with SSD’s (Solid State Drives). When compared to other silicone thermal options, Rathbun’s line of 3M acrylic thermal non-silicone pads, thermal tapes, thermal paste, thermal case, and heat spreading thermal labels are exceedingly cost-effective. 3M thermal conductive pads for SSD cooling do not produce silicone particulation, silicone oil bleed, or siloxane gas and can be used in all types of electronic applications. Our line of 3M non-silicone acrylic thermal pads, thermal tapes, and thermal labels are conformable, dielectric, completely safe, and provide a proven long-life span.

Thermal Case Cooling Solutions for 2.5” SSDs

Thermal conductive 2.5 SSD case cooling technologies are available in both SATA and NVMe form factors. They can vary from a .2mm thick, 3W/m-K, UL-VO conformable thin thermal pad, to a very price-friendly 2W/m-K, with up to a 3.5W/m-K solution. 3M has also introduced a very super soft 3W/m-K non-silicone acrylic thermal pad that acts like a conformable gel but without the expensive equipment. It relies on the ease of use in a pad format.

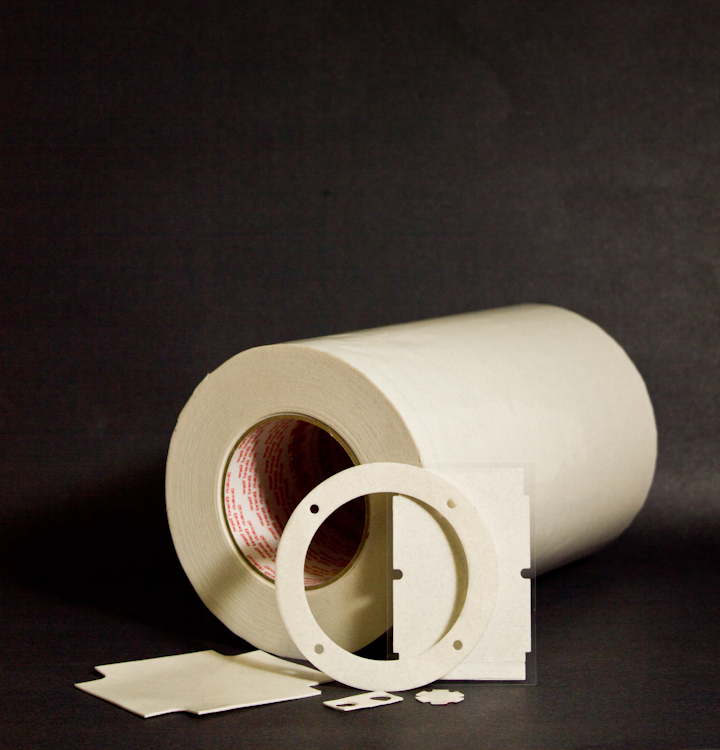

Thermal Interface Solutions for 2.5” Case Drives Benefits3M 5590H Thermal Pads

  • Lower cost when compared to silicone thermal pad equivalents
  • Good softness and conformability to non-flat surfaces
  • No silicone particulation
  • Good surface tack & dielectric performance
  • Excellent durability
  • No siloxane outgassing
  • Halogen-free
  • No silicone oil bleed
  • UL-94 V-O certified
  • Short Lead Times and readily available

Thermal Cooling Tape for M.2 SSDs

Rathbun’s high-performance non-silicone thermal solution for M.2 SSDs can utilize NVMe or SATA form factor versions. Rathbun has perfected a heat-dissipating thermal label customized to each manufacturer’s layout and design. Since SOC is known to be the largest heat source problem, we have implemented solutions to control and contain SOC heat, allowing the SOC to cool to acceptable levels.

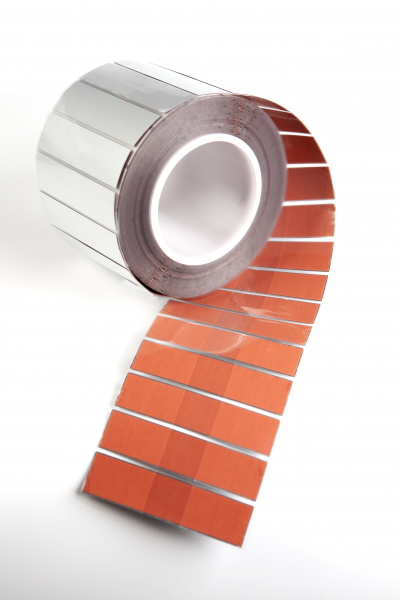

Thermal Cooling Tape for M.2 Case SSDs BenefitsRoll of Heat spreader label

  • Printable label design
  • Heat Spreading inner core
  • Thermal spot isolating; (Can cool both SOC and Nand, or cool just the SOC)
  • UL VO
  • Dielectric
  • Non-silicone
  • Proven and tested performance
  • Electrically insulated
  • Halogen Free
  • Zebra Printer compatible on some models
  • High humidity compatible
  • Extra-strong 3M adhesive built

Thermal Paste for M.2 & 2.5” Case SSDs

Compared to other gels and gap-filling materials, Rathbun's Thermal Paste TP10 is a more cost-effective thermal management solution. Thermal paste delivers proven cooling solutions for solid-state drives and other electronic thermal displacement applications.

3M Non-Silicone Thermal Pad Products

  • 3M 5590H

    • Thermal pad, .50mm, 1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, 3mm thick, 3W/m-K, UL-VO
    • A proven performer and used extensively, comes in rolls, non-silicone
  • 3M 5590Pi-02

    • Thermal pad, .2mm thick, 3W/m-K, UL-VO Comes in sheets, conformable thin pad, non-silicone
  •  3M 5571

    • Thermal pad, .50mm, .75mm, 1.0mm, 1.5mm, 2mm,  2W/m-K, UL-VO

    • A very inexpensive option, comes in rolls, non-silicone
  • 3M 5550H

    • SUPER SOFT thermal pad, .5mm, 1mm, 1.5mm thick, 3W/m-K, UL VNew to the market
    • 5550 is a very soft and conformable 30 Shore 00, simulating a silicone thermal pad, in a non-silicone material

3M Non-Silicone Thermal Tape Products

  • 3M 8800 Series

    • This product has a long history of success as a non-silicone thermally conductive tape
    • 5mil, 10mil, 15mil, and 20 mil thick options.
    • While at 0.6 W/m-K thermal conductivity would seem low, its wet-out and excellent impedance levels enable it to perform at the highest levels
    • 3M 8800 series tape is VHB, with thermally conductive performance.
  • 3M 8926

    • This tape comes in .5mm, .20mm, .25mm thick options, 1.5W/m-K rating, It is a strong performer in the LED market

Thermal Non-Silicone SSD Cooling Material Applications

Proper contact between the pad and the device can be achieved by utilizing a dry, clean, and well-unified surface. The best pre-application treatment chemicals are either rubbing alcohol or heptane, with the ideal application temperature range of 0° to 40° C. Acrylic thermal-based interface pads can be used within a wide range of electronic applications that require heat transfers from a warmer source to a cooler location, these include:

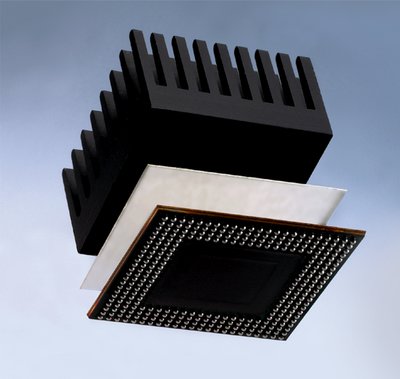

  • Heat sink interface3M Heatsink Interface
  • Solid State Drives
  • LED boards
  • IC packaging
  • Gap filling
  • HD TV’s
  • Scan module boards
  • COF chip heat conduction processes

Industries Served by Rathbun’s SSD Cooling Solutions

As a top supplier of SSD Cooling Solutions, customers from a wide range of industrial fields benefit from Rathbun’s cooling solutions. Industries served by Rathbun include:
  • Aerospace & Military
  • Automotive
  • Biotech, Medical, & Healthcare
  • Industrial Manufacturing
  • Technology & Electronics

Why Choose Rathbun for Your SSD Cooling Solution Needs?

At Rathbun, we value you and your business. We want our working relationship to be one of complete satisfaction. We can cross reference most distributor or manufacturer part numbers, making it quick, easy, and painless to find the right solution for your needs. Advantages of working with Rathbun for your thermal non-silicone SSD cooling solutions, include:
  • More than 50 years of industry experience
  • 3M Preferred Converter
  • Products manufactured in the USA
  • Short lead times

Convenient, Short Lead-Times on All SSD Thermal Cooling Solution Products

As a reminder, Rathbun’s non-silicone acrylic thermal pads, thermal tapes, and thermal heat spreading labels are readily available with short lead times. Our manufacturing process is quick and efficient, equating to shorter project lead times, providing an innovative solution for time-sensitive electronic deadlines.

Contact Rathbun for 3M Thermal Non-Silicone SSD Cooling Solutions Today

Contact us for more information regarding our thermal interface materials for SSD cooling and other cooling solution products today. Rathbun is also a 3M Preferred Converter, we can custom die-cut and laser-cut 3M products into complex shapes and sizes. If you are interested in custom cutting, please visit Rathbun's converting services or request a quote for further pricing details today.
