TUFCOTE™ XL Acoustic Foam
What Is TUFCOTE XL Acoustic Foam?

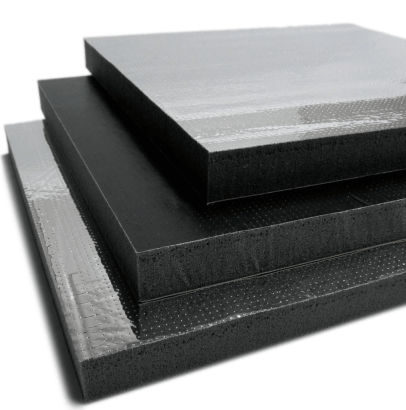

TUFCOTE XL is a high-performance acoustic foam manufactured by Aearo Technologies, a 3M company. It is designed for industrial applications that require noise control, vibration management, and thermal protection in a single material.The foam features a polyurethane base with a PET (polyester) facing and is available in aluminized or black surface options. It achieves a Noise Reduction Coefficient (NRC) of up to 0.8 at just 1-inch thickness. This efficient and low-profile design makes TUFCOTE XL an outstanding material for applications where space is limited but acoustic performance cannot be compromised.
Rathbun is an authorized converter of Aearo Technologies products. We supply TUFCOTE XL in custom sizes, shapes, and formats to fit your specific application.
How TUFCOTE XL Acoustic Foam Works
Optimized Cellular Construction for High NRC Performance
Standard acoustic foams rely on bulk thickness to achieve meaningful sound absorption. In contrast, TUFCOTE XL features an optimized cellular structure iengineered to absorb a broad range of frequencies more efficiently, reaching 0.8 NRC at 1 inch and climbing to 0.9 NRC at 2 inches and 1.0 NRC at 3 inches.The PET facing works alongside the foam substrate to accentuate absorption, particularly in the mid-to-high frequency range where industrial equipment noise is most common.
Bonded Construction, Not Laminated
This is one of the most important distinctions between TUFCOTE XL and conventional acoustic foam products. Most urethane foams are laminated, meaning the facing is glued to the foam substrate. In high-airflow environments or near heat sources, laminated facings can separate over time. TUFCOTE XL uses a thin sheet casting process that chemically bonds the PSA, foam, and surface layer into a single integrated structure. The facing does not separate.Aluminized Facing vs. Black Polyester Facing
While both facings deliver superior acoustic absorption performance, they differ in thermal behavior. The aluminized surface reflects radiant heat, while the black polyester surface absorbs it.- Aluminized Polyester (AP): The reflective surface deflects radiant heat rather than absorbing it. In testing near a heat source at 3 inches, the aluminized surface held steady at around 250°F while a black urethane-faced foam in the same test climbed toward 450°F before testing was terminated. The substrate temperature delta between the two was more than 75°F. For installations near engines, exhaust components, or other radiant heat sources, the aluminized facing provides a meaningful thermal protection advantage. It also reflects interior lighting, which can reduce the need for additional lighting inside enclosures.
- Black Polyester (BP): The black polyester version is appropriate for standard acoustic applications where radiant heat exposure is not a concern. It offers the same acoustic absorption performance without the heat-reflective properties.
Acoustic Foam for Equipment Enclosures and Industrial Applications
TUFCOTE XL’s combination of acoustic absorption, thermal management, and durable bonded construction makes it a practical choice across a range of demanding environments, including:- Power Generation Enclosures: Generator enclosures involve continuous vibration and challenging conditions that can wear down acoustic foams. TUFCOTE XL is an excellent material for generator OEMs precisely because its construction holds up where laminated alternatives fail.
- Industrial Equipment Housings: Compressors, pumps, and other motorized equipment benefit from TUFCOTE XL. Lining the enclosure with high-NRC foam reduces the noise that escapes to the surrounding environment.
- Heavy Machinery Cabs and Operator Enclosures: Used in cab and operator enclosures for construction, agricultural, and industrial vehicles.
- HVAC and Mechanical Enclosures: The chemically bonded construction of TUFCOTE XL makes it resistant to the kind of delamination failures that affect conventional foam in these applications.
- Any Space-Constrained Application: When enclosure geometry limits how thick your acoustic treatment can be, TUFCOTE XL's NRC-per-inch performance provides more absorption in less space than conventional open-cell foam.
Custom Fabricated Acoustic Foam from Rathbun
Rathbun supplies TUFCOTE XL as a stocking converter, which means we do more than resell sheet material. We cut, convert, and fabricate TUFCOTE XL to your specifications, whether that means custom die-cut parts, specific sheet sizes, or PSA-backed formats for easier installation.Working with a converter rather than ordering raw sheet stock reduces your fabrication burden and shortens the path from material specification to finished part. Learn more about Rathbun's converting services.
